Equipment:

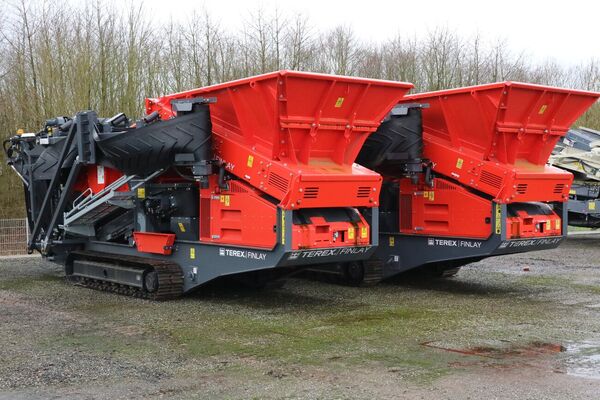

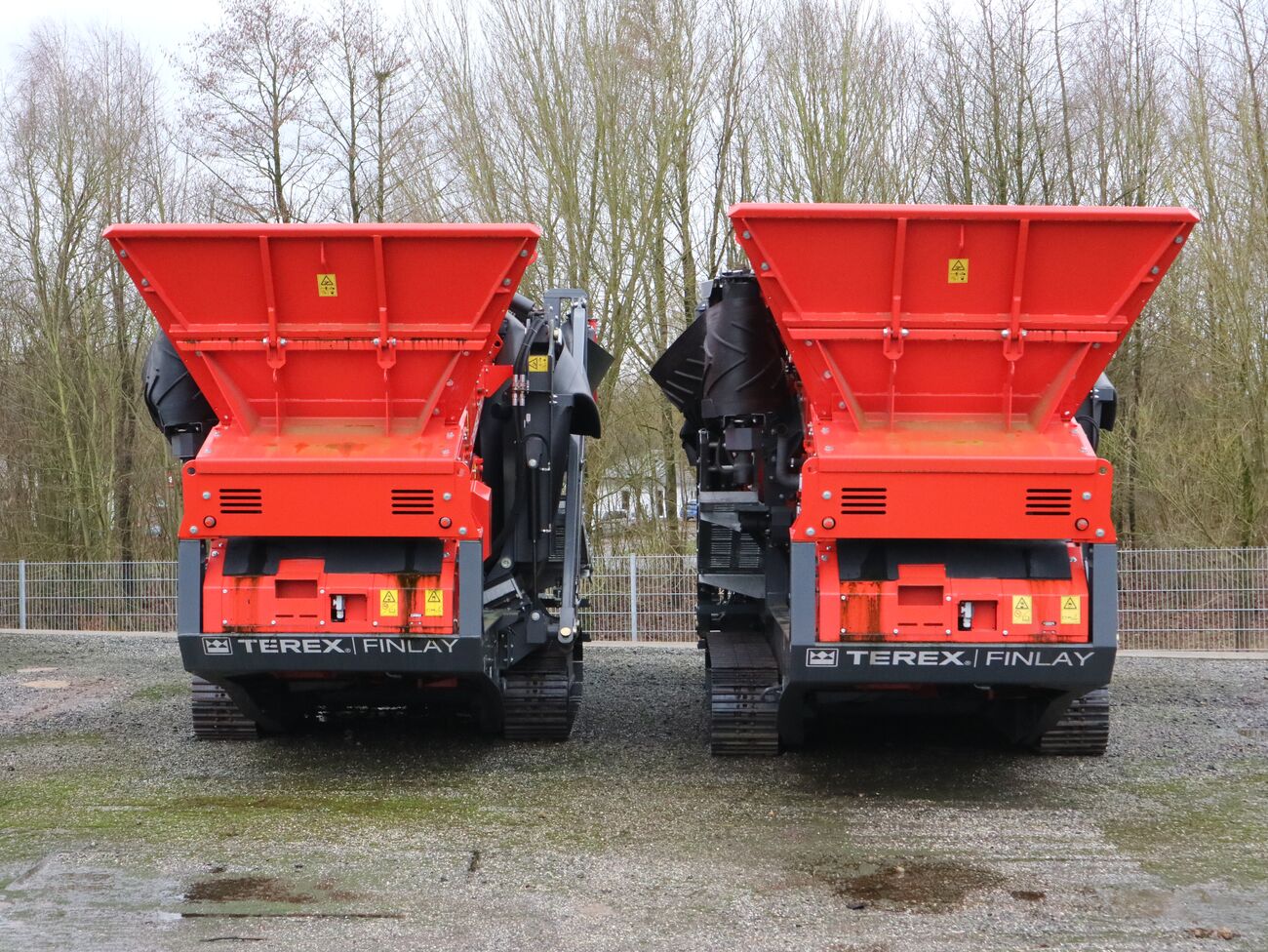

The mobile Terex® Finlay 860 is a compact
and aggressive, forward-facing heavy-duty screen. This
Extremely versatile and highly flexible system offers top performance
in primary and secondary comminution, e.g. B. during processing
of aggregates, sand and gravel, topsoil, building rubble and
Recycling applications in limited space.
The completely independent system can be folded hydraulically
and ready for transport in less than 30 minutes. The optional
Feeding through a crusher, a screening plant or a
loaders makes them ideal for contractors and small operators.
- Feed bunker 2.9 m³
- upper screen deck 2.77 x 1.22 m
- lower screen deck 2.68 x 1.22 m
- Total screening area 6.7 m²
- Width of main discharge conveyor 1,000 mm
- Discharge height 3,030 mm
- Wide side bands (fine and medium fraction) 650 mm
- Discharge height approx. 3,640 mm
- Width floor panels 400 mm
Transport dimensions: 9.20 x 2.50 x 3.10 m
Weight: approx. 16,700 kg
